Titen HD Series THD37300H4SS Screw Anchor, 3/8 in Dia, 3 in L, Stainless Steel
Sku: 12320100
CALL FOR PRICE
0 Available at
San Marcos
Bolt Anchor Options:THD37300H4SS Screw 3/8inx3inL
The Titen HD stainless-steel screw anchor for concrete and masonry sets the new standard for when the job calls for installation in multiple types of environments. It is the ultimate choice to provide fast and efficient installation, combined with long-lasting corrosion-resistance for an unsurpassed peace-of-mind. The serrated carbon-steel threads on the tip of the stainless-steel Titen HD are vital because they undercut the concrete as the anchor is driven into the hole, making way for the rest of the threads to interlock with the concrete. In order for these threads to be durable enough to cut into the concrete, they are formed from carbon steel that is then hardened and brazed onto the tip of the anchor. When matched to the appropriate environment and application, anchors made from Type 300 series stainless steel will resist the effects of corrosion and maintain their strength and integrity.
- Less carbon steel, less expansion

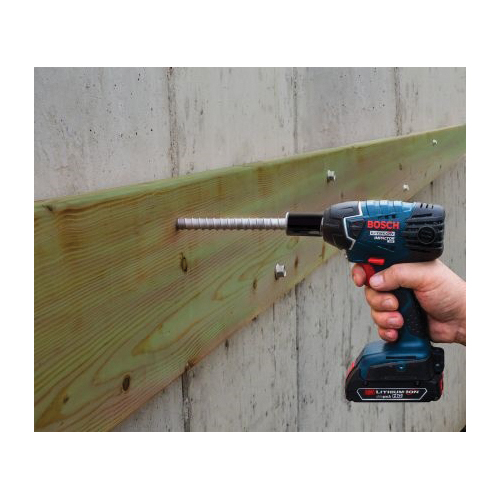

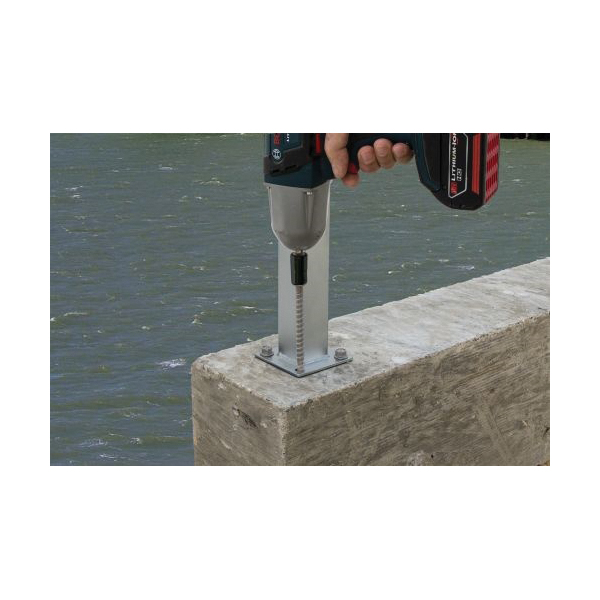

- Installs with an impact wrench or by hand tool
- Ideal for exterior or corrosive environments
Diameter
3/8
Length
3
Minimum Embedment Depth
2-1/2
Drill Size
3/8
Tensile Strength
12,177
Shear Strength
3790
Minimum Concrete Thickness
4
Post/Joist Size
1/2 to 9/16
Material
Stainless Steel
