HSUL Series HSUL210-2 Heavy Left Skewed U-Shaped Hanger, 8-11/16 in H, 2-7/16 in D, 3-1/8 in W, Steel
Sku: 12610060
CALL FOR PRICE
0 Available at
San Marcos

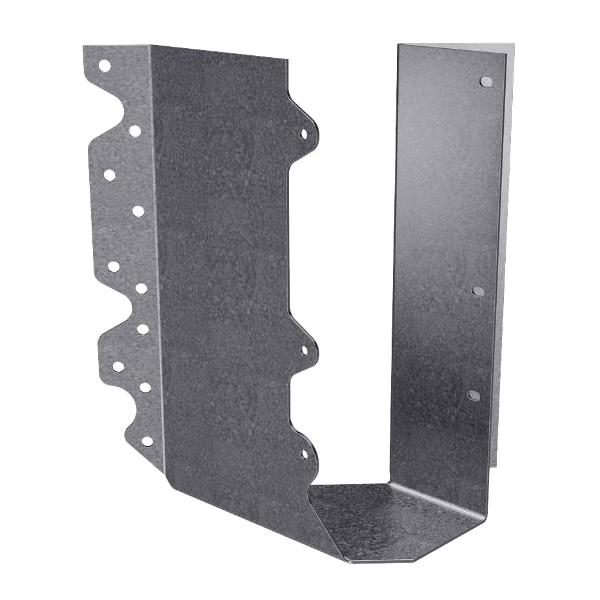

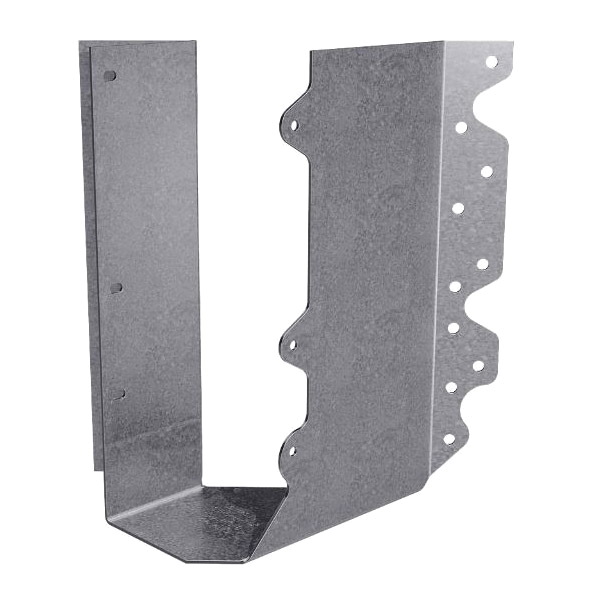

The HSUR/L are 45 deg skewed hangers designed to support large joist members or double I-joists in wood construction. These heavy U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The HSUR and HSUL hangers are identical except that they are skewed 45 deg to the right (HSUR) and the left (HSUL), respectively.
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40 to 50 deg skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
Size
2 x 10
Skew Angle
45
Fastener Type
Nail
Fastener Size
(20) 0.162 in Dia x 3-1/2 in L Face, (6) 0.162 in Dia x 2-1/2 in L Joist
Material
Steel
Finish
Galvanized
Mounting Type
Face
Height
8-11/16
Width
3-1/8
Depth
2-7/16
