MIU Series MIU2.37/14 Medium I-Joist Hanger, 13-1/2 in H, 2-1/2 in D, 2-3/8 in W, 2-5/16 x 14 in
Sku: 12610098
CALL FOR PRICE
0 Available at
San Marcos

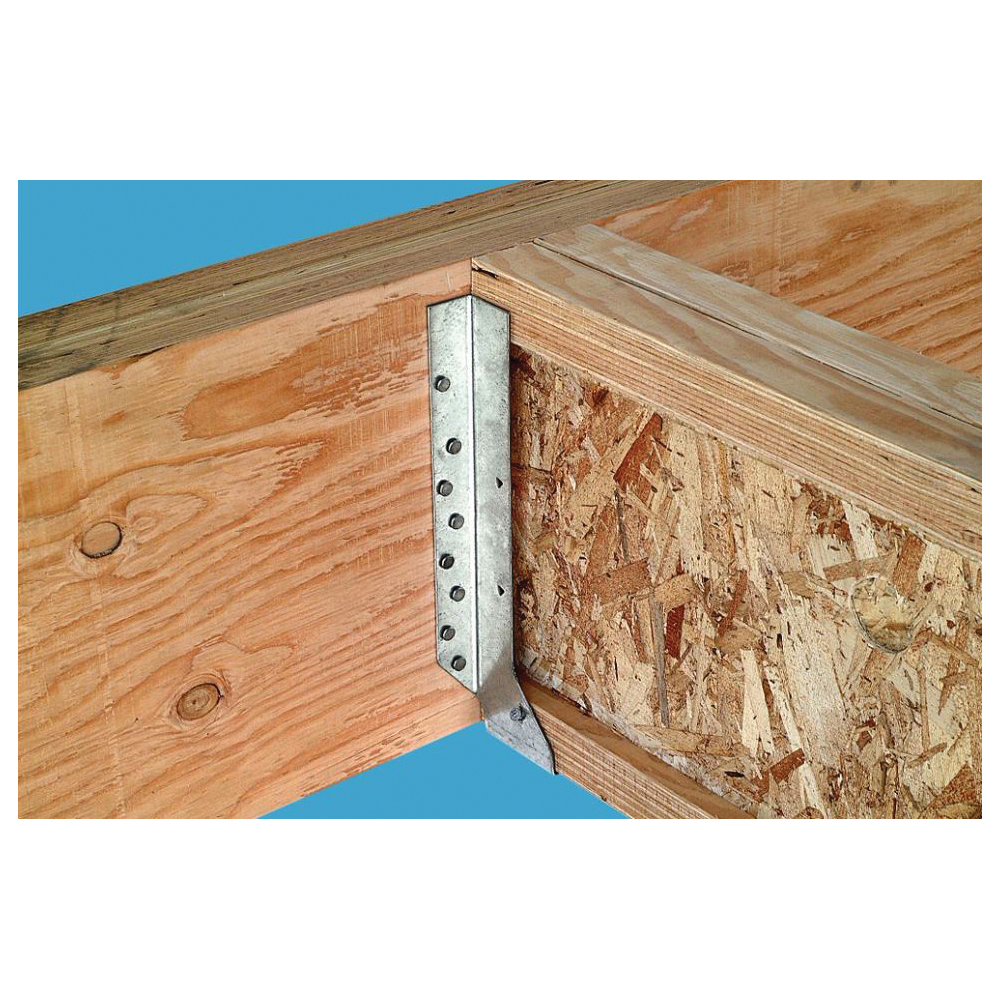

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.
- Extra optional triangle holes for additional load
- Models will normally accommodate a skew of up to 5 deg
- MIU-series hangers are tested, load rated and code compliant
Size
2-5/16 x 14
Weight Capacity
975
Skew Angle
5
Fastener Type
Nail
Fastener Size
(22) 0.162 in Dia x 3-1/2 in L Face, (2) 0.148 in Dia x 1-1/2 in L Joist
Material
Steel
Finish
Galvanized
Mounting Type
Face
Height
13-1/2
Width
2-3/8
Depth
2-1/2
