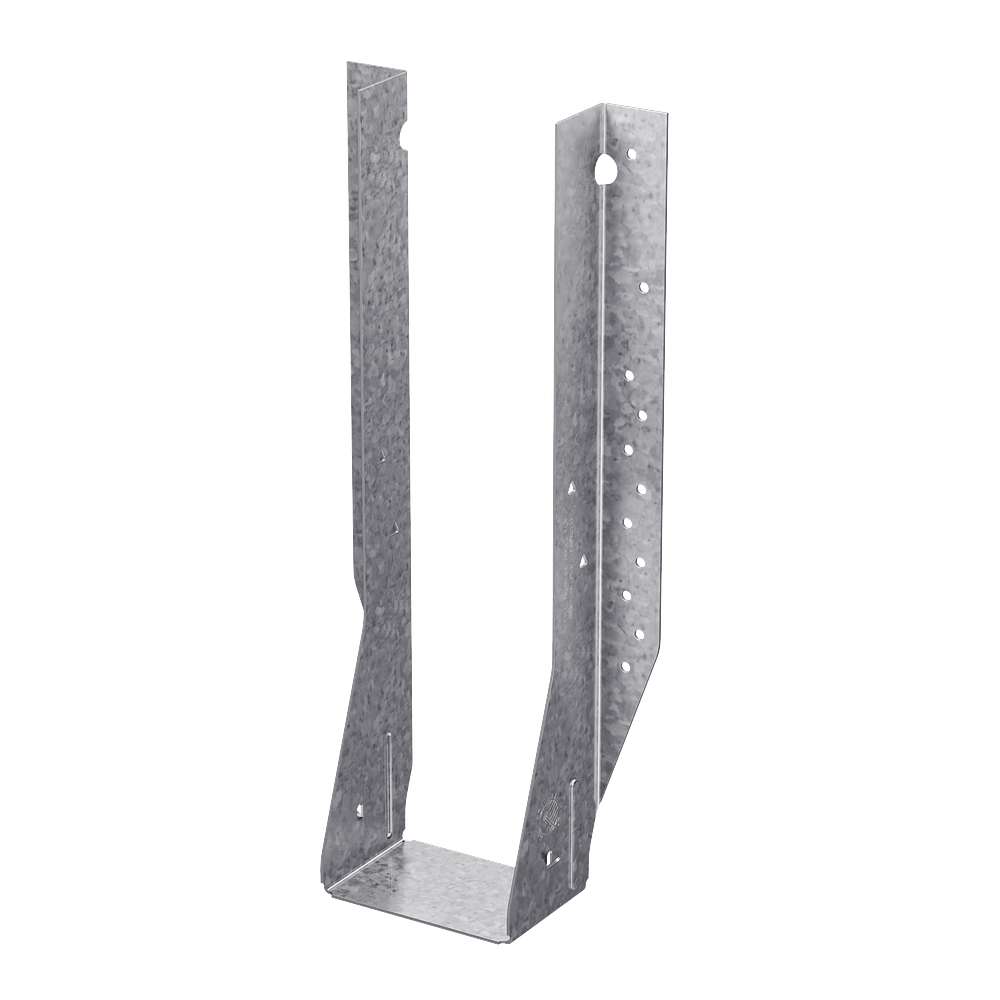

MIU3.56/18 Galvanized Face-Mount Joist Hanger for 3-1/2 in. x 18 in. Engineered Wood
Sku: 12610126
$51.99
0 Available at
San Marcos
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners.
- Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
- These hangers cannot be modified
- Actual joist size: 3-1/2 in. x 18 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Skew Angle
5
Fastener Type
Nail
Fastener Size
Install with 0.162 in. x 3-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the header
Material
Steel
Finish
Galvanized
Height
17.40075
Width
5.9265
Depth
2.807
