Milbank

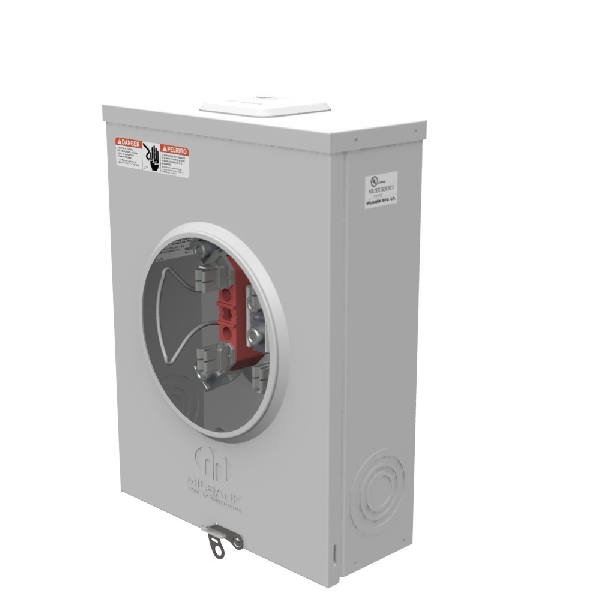

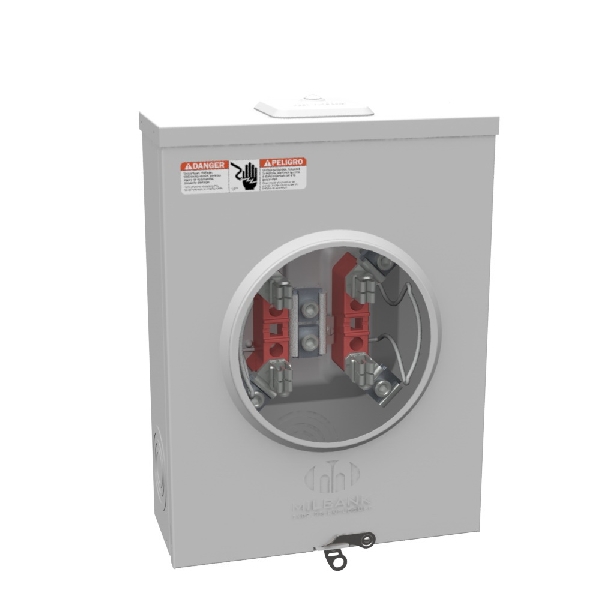

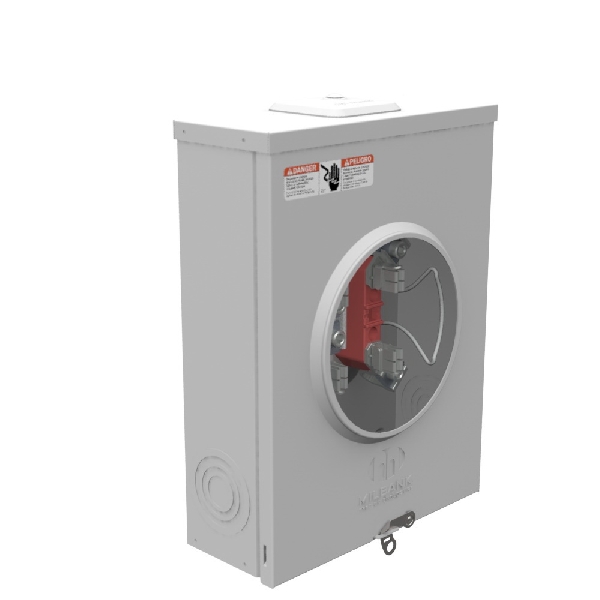

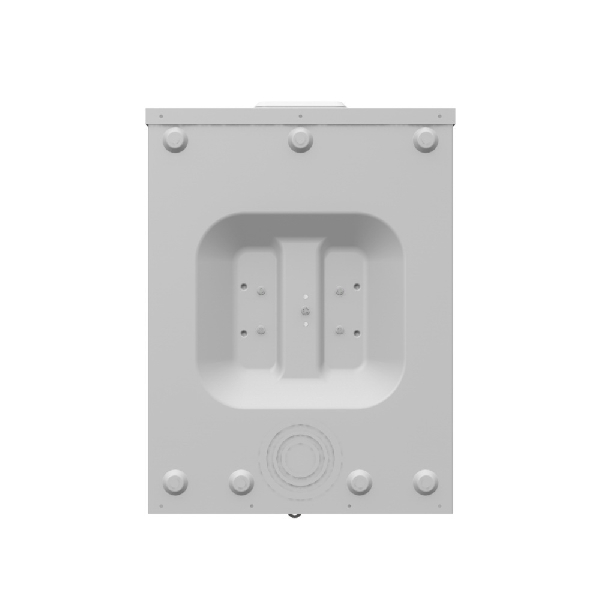

U7040-DL Meter Socket, 1-Phase, 200 A, 600 VAC, 4-Jaw, Overhead, Underground Cable Entry, NEMA 3R Enclosure

Sku: 180266
CALL FOR PRICE
0 Available at San Marcos
Meter Socket Options:Milbank U7040-DL 200A 4Jaw

Milbank Meter Socket, 600 VAC, 200 A, 60 Hz Frequency, 1 ph, 4 Jaws, Continuous Feed, 6 AWG to 350 kcmil Wire, Overhead, Underground Cable Entry, 1 Positions, NEMA 3R Enclosure, Ringless Cover, Surface Mounting, Steel, Powder-Coated, Dimensions: 4.25 in L x 11 in W x 14.563 in H

Voltage Rating
600
Current Rating
200
Frequency Rating
60
Number of Phases
1
Number of Jaws
4
Feed Type
Continuous
Wire Size
6 AWG to 350 kcmil
Cable Entry
Overhead, Underground
Number of Positions
1
Enclosure Type
NEMA 3R
Cover Type
Ringless
Mounting Type
Surface
Material
Steel
Finish
Powder-Coated
Dimensions
4.25 in L x 11 in W x 14.563 in H
