Milbank

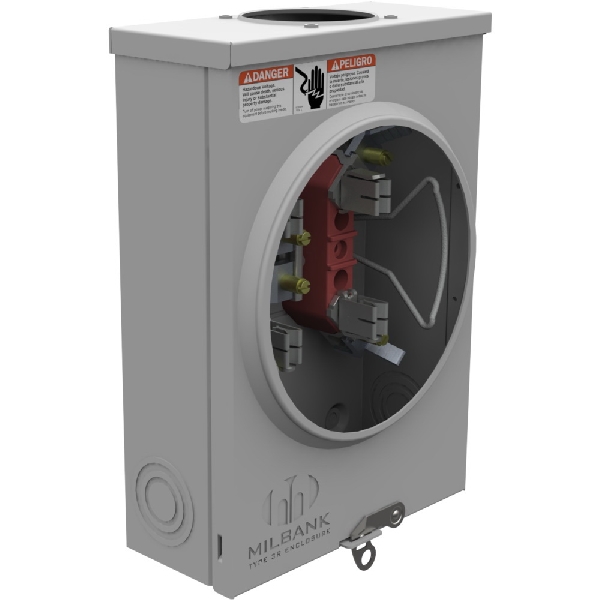

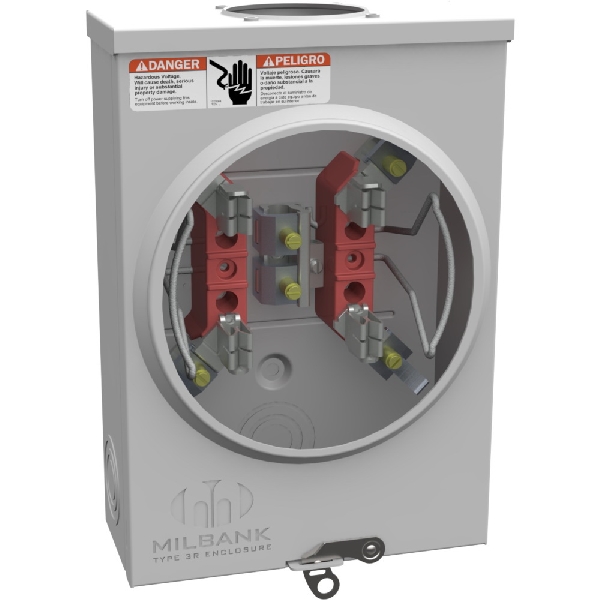

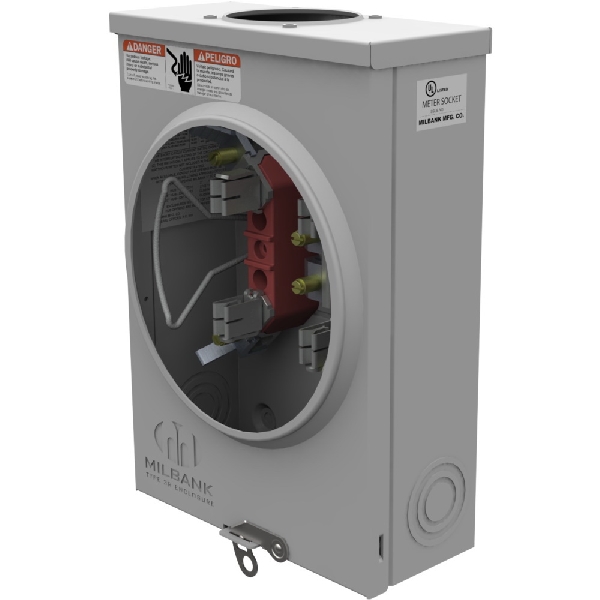

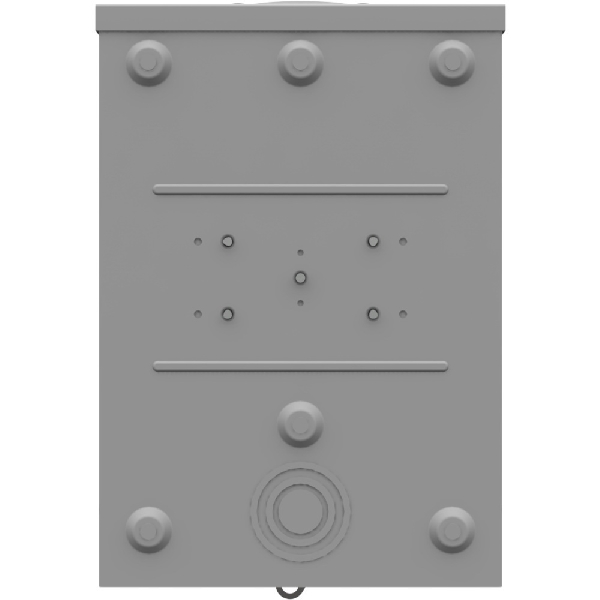

U7487-RL-TG-KK Meter Socket, 1-Phase, 125 A, 600 VAC, 4-Jaw, Overhead, Surface, Underground Cable Entry

Sku: 18035022
CALL FOR PRICE
0 Available at San Marcos
Meter Socket Options:Milbank U7487-RL-TG-KK 125A 4Jaw

Milbank Meter Socket, 600 VAC, 125 A, 60 Hz Frequency, 1 ph, 4 Jaws, Continuous Feed, 6 to 2/0 AWG Wire, Overhead, Underground Cable Entry, 1 Positions, NEMA 3R Enclosure, Bypass Type: Horn, Ringless Cover, Surface Mounting, Steel, Powder-Coated, Dimensions: 3.313 in L x 8 in W x 11.5 in H

Voltage Rating
600
Current Rating
125
Frequency Rating
60
Number of Phases
1
Number of Jaws
4
Feed Type
Continuous
Wire Size
6 to 2/0
Cable Entry
Overhead, Underground
Number of Positions
1
Enclosure Type
NEMA 3R
Bypass Type
Horn
Cover Type
Ringless
Mounting Type
Surface
Material
Steel
Finish
Powder-Coated
Dimensions
3.313 in L x 8 in W x 11.5 in H
