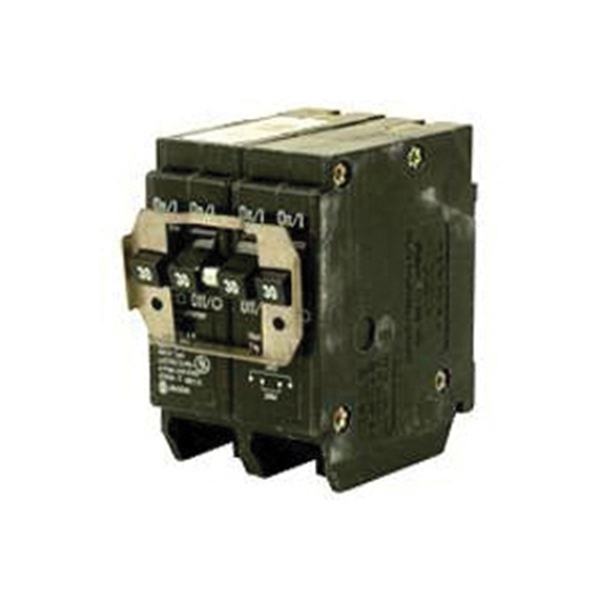

BQ230250 Circuit Breaker with Rejection Tab, Quad, Type BQ, 30/50 Amp, 4 -Pole, 120/240 V
Sku: 18039729
CALL FOR PRICE
0 Available at
San Marcos
BQ Eaton Circuit Breaker Options:BQ230250 30/50 Amp, 4 Pole
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
Type
Quad, Type BQ
Voltage Rating
120/240
Current Rating
30/50
Operating Frequency
50/60
Number of Phases
1
Number of Poles
4
Interrupt Rating
10
Actuator Type
Magnetic, Thermal
Wire Size
14 to 4
Terminal Type
Feed-Thru
Number of Spaces
2
Mounting Type
Plug
Dimensions
3.1 in L x 1.97 in W x 2.88 in H
Operating Temperature
60 to 75
Suitable for
BR Series Load Centers
