CPTZ CPT66Z Concealed Post Base, 6 x 6 in Post, 12 ga Gauge, Steel, ZMAX
Sku: 28061004
CALL FOR PRICE
0 Available at
San Marcos
Post Bases:Simpson CPT66Z Concealed 6inx6in ZMAX

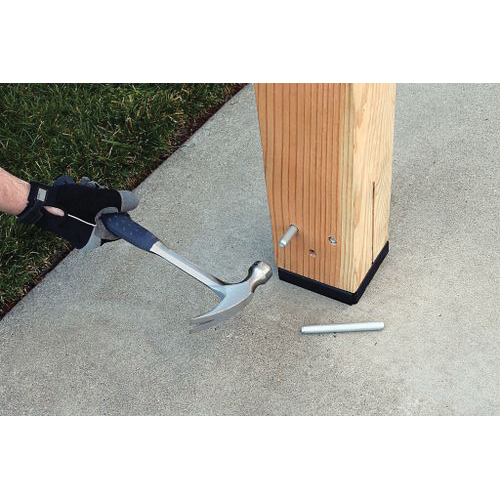

The CPTZ concealed post-base provides a clean, concealed look while providing a 1 in stand-off height above concrete. The 1 in stand-off reduces the potential for decay at the post-end and satisfies code requirements for posts that are exposed to weather, water splash or in basements. It is part of a system of concealed connectors that includes the CBTZ and CJT.
- The 1 in stand-off height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
- The stand-off reduces the potential for decay at post or column ends
- The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
- The CPTZ is tested and load-rated for uplift, download and lateral load
- Simpson Strong-Tie® saves installers time by providing all the necessary components to make the post connection in one box (anchors not included)
Weight Capacity
20,130 lb Down, 3315 to 4055 lb Uplift
Post Size
6 x 6
Material
Steel
Material Gauge
12
Finish
ZMAX
Length
5-3/8
Width
5-3/8
Height
5-3/4
Includes
(3) 1/2 x 4-3/4 in Mechanical Galvanized Dowels
