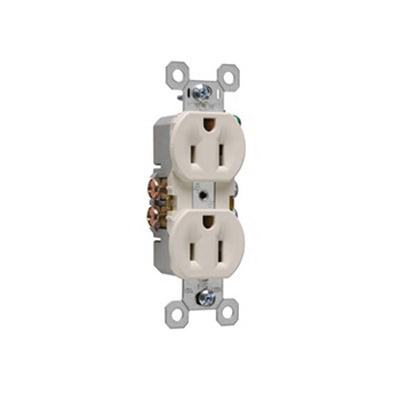

5270 5270V-BU Duplex Receptacle, 2 -Pole, 15 A, 125 V, Side Wiring, NEMA: 5-15R, Ivory
Sku: 4842589-052303-18
$3.09
120 Available at
SHIP TO STORE
Standard duplex receptacles - CO/ALR feature side wire terminals accept up to #10 solid or stranded copper or solid aluminum wire. Terminal screws backed out - ready for wiring. Combination slot/Phillips head mounting and terminal screws ease installation.
- For direct connection to aluminum or copper wire
- Double-wipe ground contacts ensure long term ground retention
- Combination Phillips/slotted screw heads ensure faster installation
- Easy access split circuit break-off tab
- Terminal screws backed out and ready for wiring
- Side wire terminals accept up to #10 solid copper wire or solid aluminum wire
Voltage Rating
125
Current Rating
15
Frequency Rating
60
Number of Poles
2
Number of Wires
3
Wiring Type
Side
Wire Size
10
NEMA Configuration
5-15R
Operating Temperature
-20 to 70
Mounting Type
Flush
Color
Ivory
Dimensions
4.06 in L x 1.38 in W x 0.71 in D
