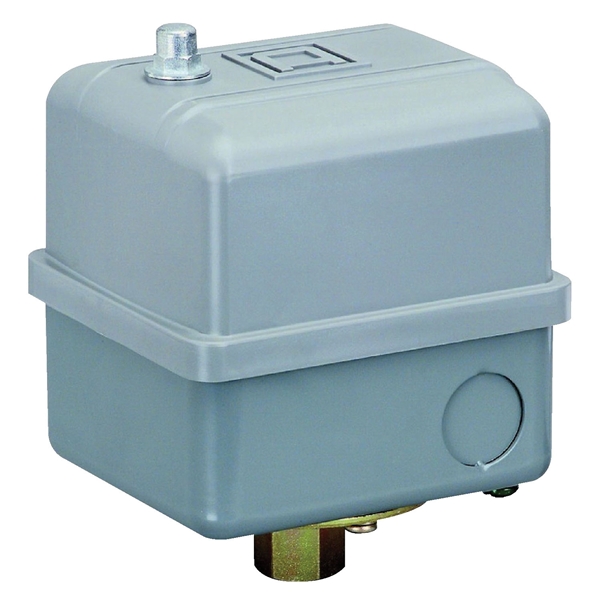

9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure
Sku: 6128771-052303-24
$114.04
1 Available at
SHIP TO STORE
Pump Switches:Square D 9013GSG2J20 115/575V 1/4 in NPS Female
Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. 2-Pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
Current Rating
10
Voltage Rating
115/575
Contact Form
DPST
Number of Phases
3
Connection Type
1/4 in NPS Female
Port Type
Single
Enclosure Type
NEMA 1
Operating Cycles
100,000
Electrical Connection Type
Screw Clamp Terminal
Diaphragm Material
Nitrile
Temperature Rating
-22 to 257
