SDWH27400G Screw, 0.276 in Thread, 4 in L, Serrated Thread, Washer Head, Hex Drive, Saw Tooth Point

Name: SDWH27400G Screw, 0.276 in Thread, 4 in L, Serrated Thread, Washer Head, Hex Drive, Saw Tooth Point
Brand: Simpson Strong-Tie
SKU: 7513773-052303-12

Sku: 7513773-052303-12

$415.74

4 Available at SHIP TO STORE

Estimated Arrival On: 05/07/2026

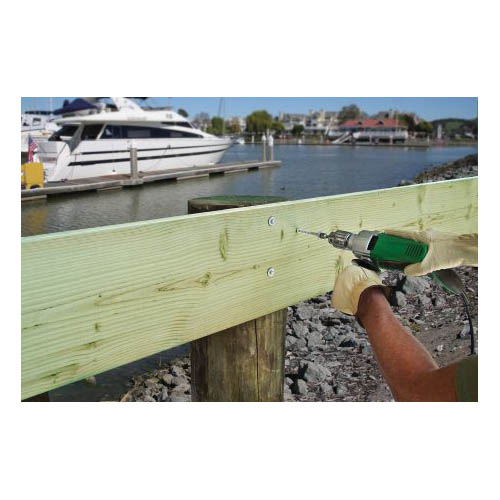

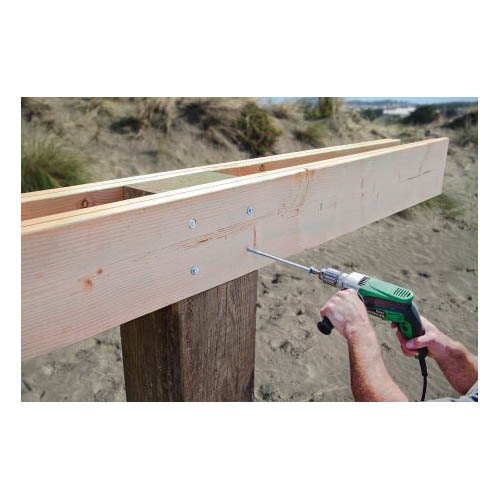

The SDWH timber-hex HDG screw is a 0.276 in Dia hot-dipped galvanized screw suitable for marine and coastal applications. The SDWH timber-hex HDG screw has a saw tooth point and oversized integral washer that makes for fast installations, no pre-drilling or separate washer needed. Speed up your next pile job by replacing 3/4 and 5/8 in HDG bolt/washer/nut assemblies (two screws for one bolt in many conditions) with the strong-drive SDWH timber-hex HDG screw. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.

0.276 in shank diameter for heavy-duty structural applications
ASTM A153 Class-C hot-dipped galvanized coating suitable for coastal and marine environments
SawTooth point design for fast starts and no pre-drilling
Oversized 0.93 in Dia integral washer eliminates the need for a separate washer
3/8 in hex drive for secure driving
