696N Ventilation Fan, 7-1/2 in L, 7-1/4 in W, 0.9 A, 120 V, 50 cfm Air, Polypropylene/Steel, White
Sku: 8225799-052303-37
$23.02
0 Available at
SHIP TO STORE
Estimated Arrival On: 09/18/2025

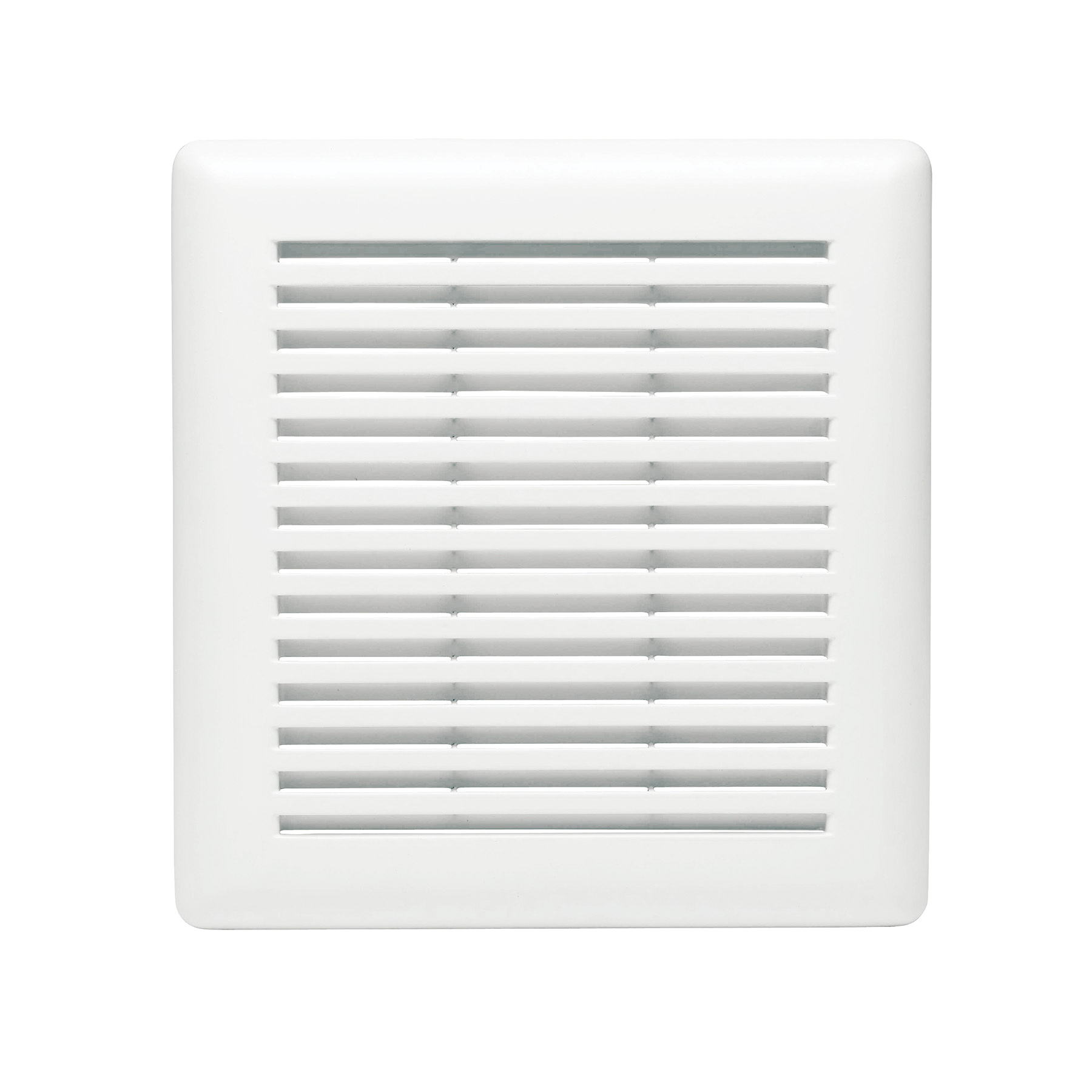

The NuTone 696N wall or ceiling 50 cfm bath fan is ideal for baths up to 45 sq-ft. It is also suitable for utility and recreation rooms up to 60 sq-ft. The attractive yet functional white polymeric grille has torsion springs that allow adjustment for thickness variances in ceilings or walls.
- 50 cfm, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom
- Mounts on either 16 in or 24 in O.C. joist or stud
- Compact housing for versatile installation
- Extra large outlet box area
- Powerful enough for rooms up to 45 sq-ft
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion-resistant galvanized steel housing stands up to moisture
- Permanently lubricated 0.9 A AC motor engineered for continuous operation
Voltage Rating
120
Current Rating
0.9
Frequency Rating
60
Air Flow Rate
50
Grille Length
8-3/4
Grille Width
9-1/8
Length
7-1/2
Width
7-1/4
Height
3-5/8
Material
Polypropylene/Steel
Color
White
Mounting Type
Ceiling, Wall
